¶ Documentation: Creating and Linking Transformation Scripts in Planning
¶ Overview
This documentation explains how to create transformation scripts in Planning and link them to forms for data validation and transformation when saving form data.
¶ Prerequisites
- Access to Planning application
- Appropriate permissions to create transformation scripts and build forms
- Knowledge of JavaScript for writing transformation code

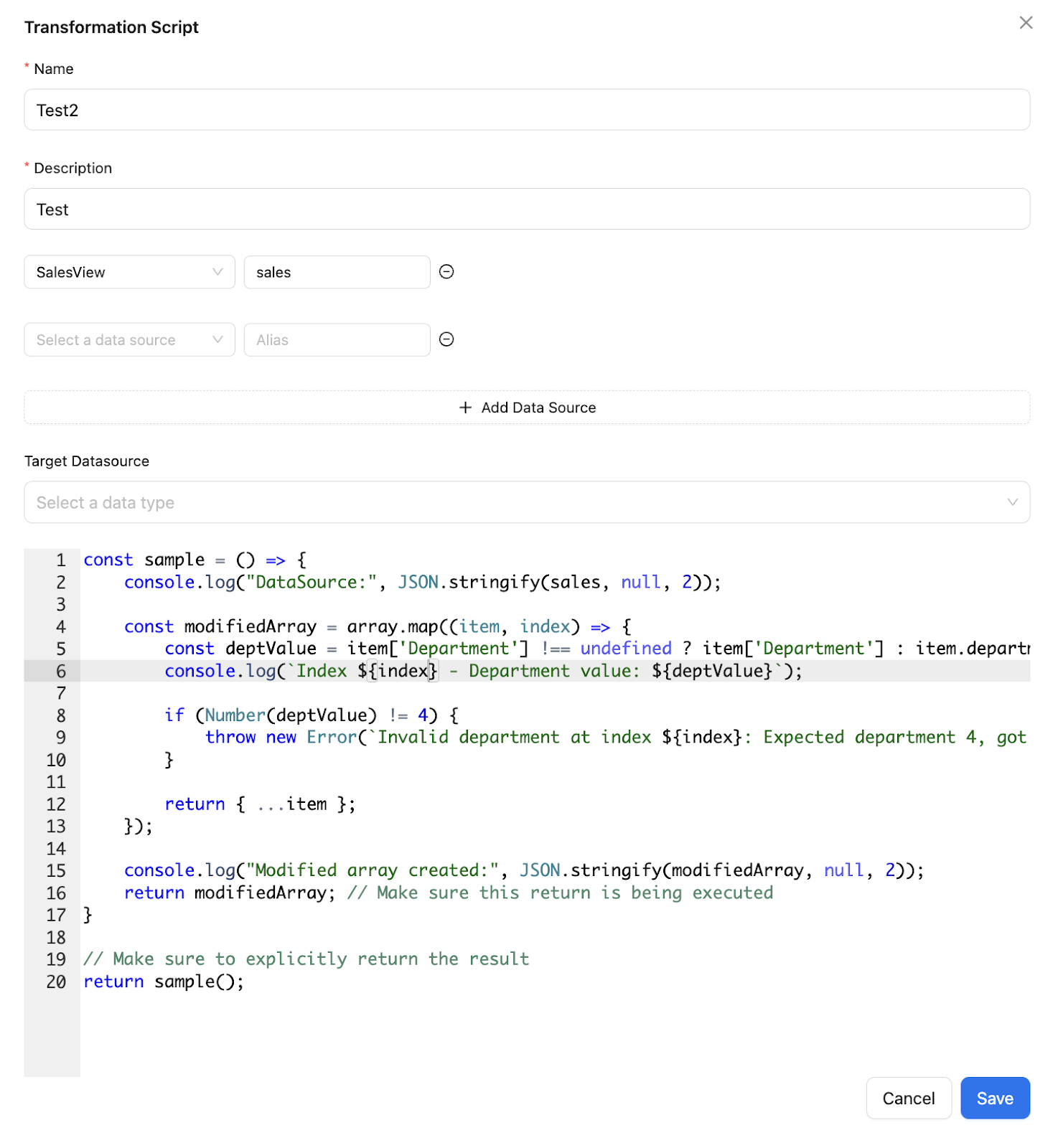

¶ Creating a Transformation Script
¶ Step 1: Access Transformation Script Creation
Navigate to the Transformation Script section in Planning for creating new transformation scripts.
¶ Step 2: Click "Create New" Button
Click on the "Create New" button to begin creating a new transformation script.
¶ Step 3: Complete the Basic Information
- Name: Enter a descriptive name for your transformation script (required)
- Description: Provide a brief description explaining the purpose of the script (required)
¶ Step 4: Configure Data Sources
- Select Data Sources: Add one or more views as data sources
- Click the dropdown to select an available view (e.g., "SalesView")
- Set an alias for each view (e.g., "sales")
- Use the "+" button to add additional data sources as needed
- Click the "Add Data Source" button to include more data sources if required
¶ Step 5: Select Target Data Source(Optional)
Choose a target data source from the dropdown where the transformed data will be saved.
¶ Step 6: Write Transformation Code
Write JavaScript code to transform the data. Your code should:
- Process data from the source views using their aliases
- Perform any necessary validations or transformations
- Return the final data structure to be saved
¶ Step 7: Save the Transformation Script
After completing all required fields and writing your transformation code, click the "Save" button.
¶ Linking Transformation Scripts to Forms
¶ Step 1: Access Form Builder
Navigate to the Form Builder section in EAConnect.
¶ Step 2: Configure Form Settings
In the form builder screen, locate the left panel containing form configuration options:
- Form Name: Enter or verify the name of your form (e.g., "Test Transformation Script")
- Select Team: Choose the appropriate team from the dropdown (e.g., "public")
- Datasource: Select the data source to be used by the form
Refer to Form Documentation for detail configuration

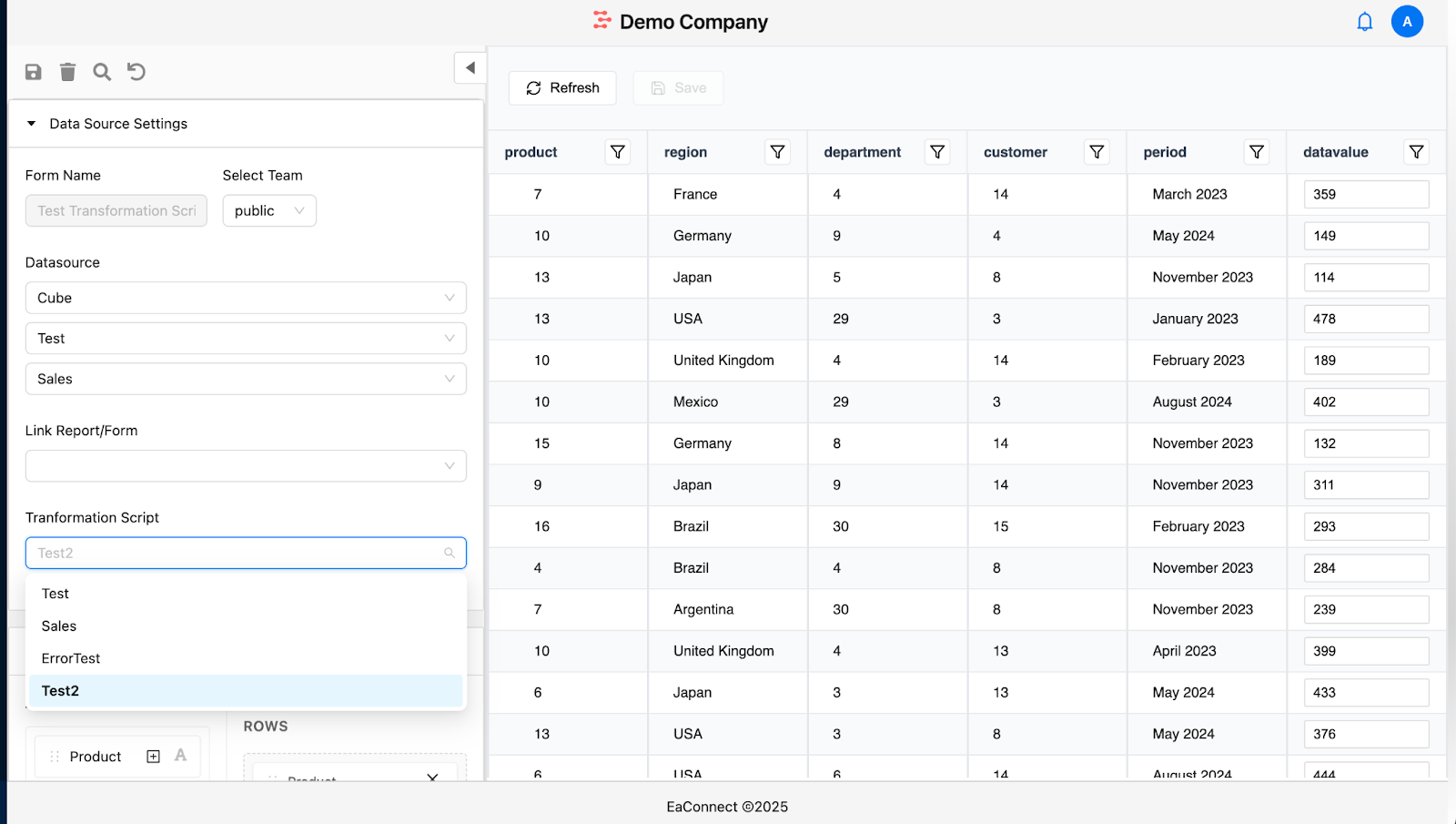

¶ Step 3: Link Transformation Script
- Locate the "Transformation Script" section in the form settings
- Click on the dropdown field to see available transformation scripts
- Select the transformation script you want to link to this form (e.g., "Test2" as shown in the screenshot)
¶ Step 4: Complete Form Configuration
Finish configuring your form with the necessary fields, layout, and other settings.
¶ Step 5: Save the Form
Save your form configuration after linking the transformation script.
¶ Execution Process
When a user edits and saves data in the linked form:
- The linked transformation script will automatically execute
- The script will validate and transform the form data according to your code
- Validation errors can prevent form submission if conditions are not met
- Transformed data will be saved to the specified target data source
¶ Important Notes
- Transformation scripts are only executed when a form with the linked transformation is saved
- The script can access data from all configured data sources
- You can perform both validation (preventing saves if conditions are not met) and transformation (modifying data before saving)
- Complex validations and business rules can be implemented in the transformation script
