¶ Creating Models in EaConnect
Models serve as containers for analytical objects like Component Tables, Cubes, Spreadsheets, and Workbooks in EaConnect.
¶ Creating a New Model
To create a new model:

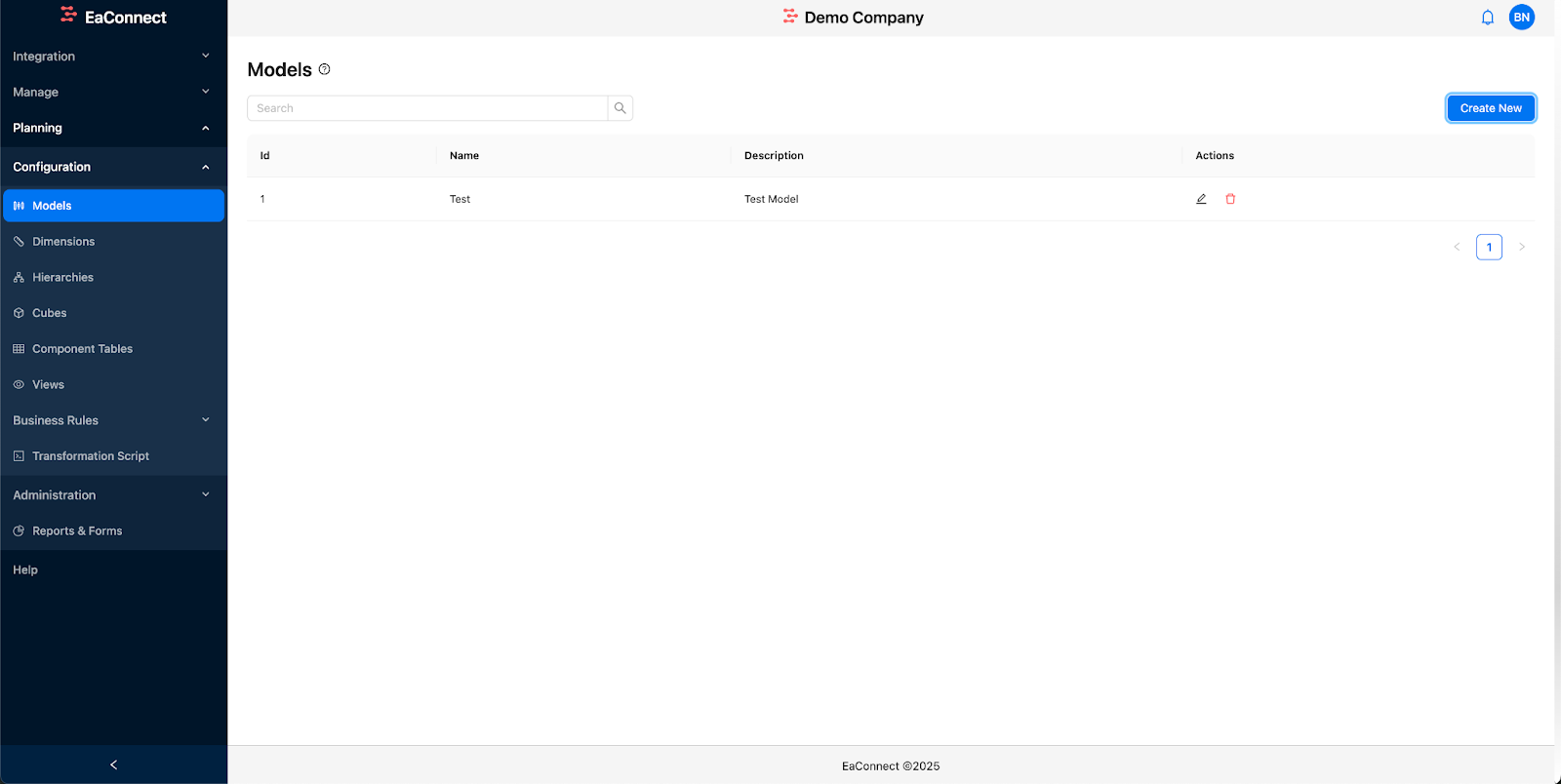

- Navigate to the Models section in the left sidebar
- Click the Create New button in the top right corner
- A modal window will appear with the model creation form:

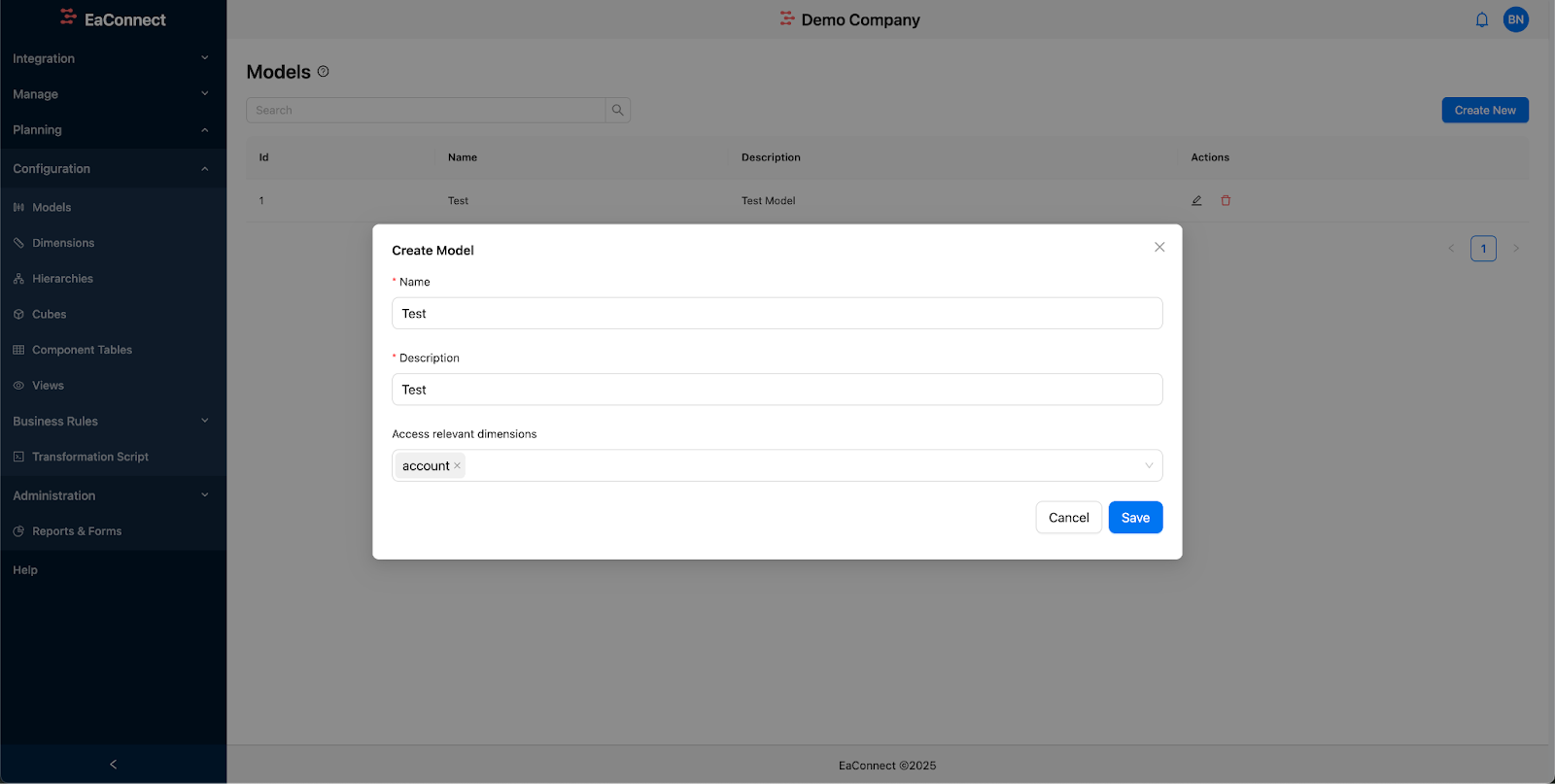

The Create Model modal window with form fields
¶ Required Fields
| Field | Description | Validation |
|---|---|---|
| Name | A unique identifier for the model | Must be alphanumeric (can include underscores) |
| Description | Brief explanation of the model's purpose | Required text field |
¶ Access Relevant Dimensions (Optional)
The "Access relevant dimensions" field is optional but controls data visibility across your organization.
When you mark a dimension as "access relevant":
- Users must have explicit access to that particular dimension to view any associated data
- Users without access to a selected dimension will not see data for that model or its components
- This setting affects all model components (Component Tables, Cubes, Spreadsheets, Workbooks)
¶
¶ Access Control Comparison
| Setting | Data Visibility | Recommended For |
|---|---|---|
| No Access Relevant Dimensions | All users with appropriate role permissions can view all data | General models with non-sensitive data |
| With Access Relevant Dimensions | Data visibility restricted based on user's dimensional access | Sensitive data requiring strict access control |
¶ Completing Model Creation
After configuring your model settings:
- Review all entered information
- Click the Save button to create the model
Once saved, your new model will appear in the Models list, ready for you to add components.
